Centric type

Butterfly Valves EBRO Z011-A 316 Viton DN50 PN16

Name: Butterfly Valves EBRO Z011-A 316 Viton DN50 PN16
Brand: EBRO
Availability: InStock

Code: 423409

or

Request a Quote, Learn how

Already In Cart

Butterfly Valves EBRO Z011-A 316 Viton DN50 PN16

Code: 423409

DESCRIPTION
ATTRIBUTES
ADDITIONAL FILES
SHIPPING METHODS - CHARGES

DESCRIPTION

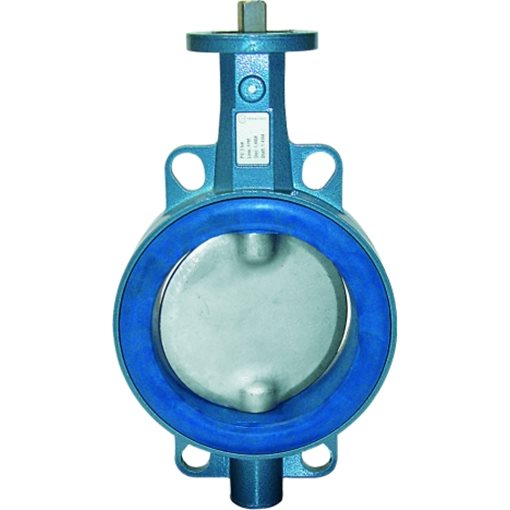

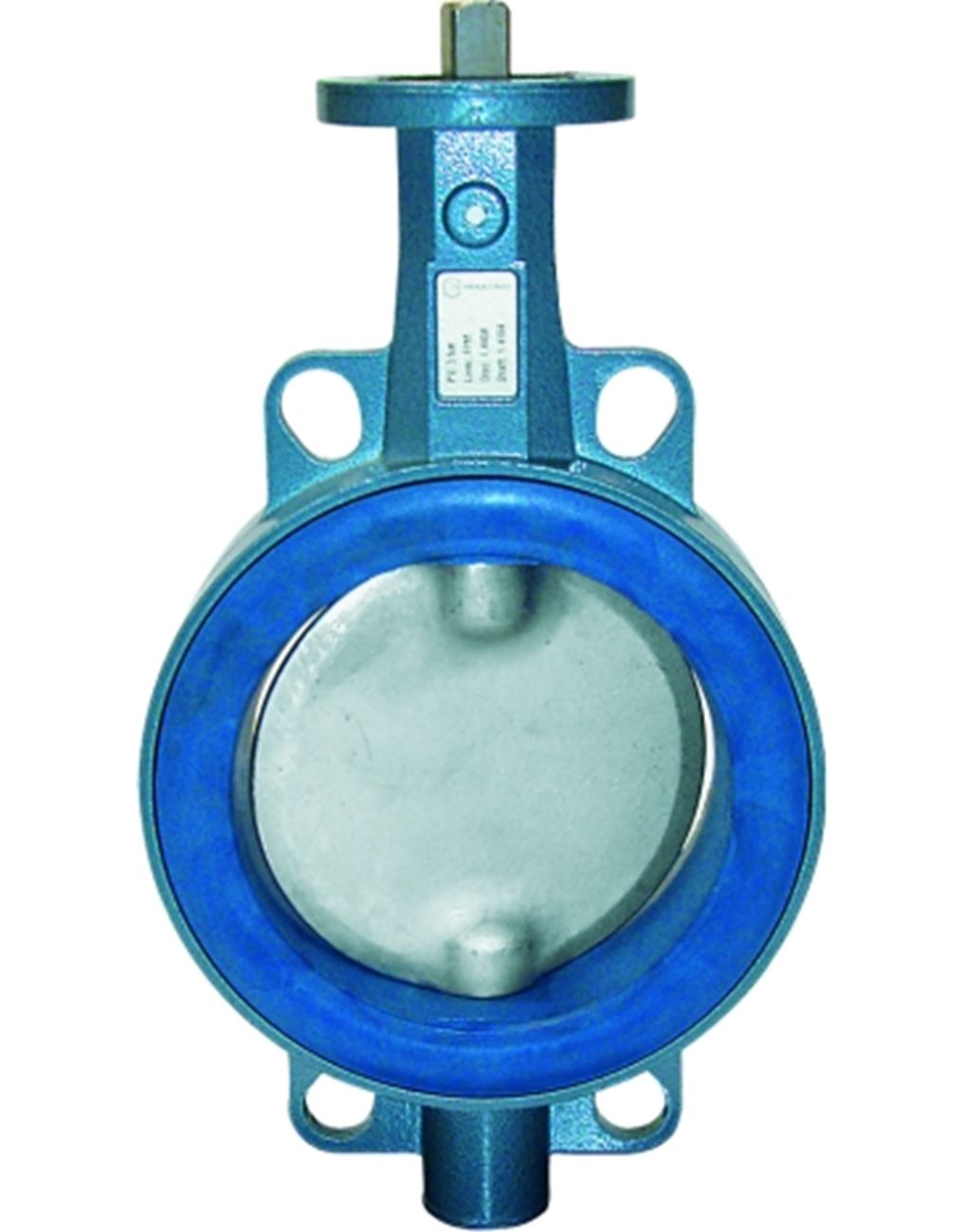

EBRO Z011A Butterfly Valve Wafer Type, with Cast Iron Body GG25, Stainless Steel Disc AISI 316 316 Viton DN50 PN16 Bare Shaft
ATTRIBUTES
- Is Overweight Product:
  False
- Type:
  2-piece shaft type
- Main connection:
  Wafer
- Actuator or Orifice:
  Bare shaft
- Pressure Class:
  PN16
- Body material:
  Grey Cast Iron GJL-1040 (GG 25)
- Liner / Lining / Sleeve / Seal rings:
  FPM / FKM / Viton
- Ball / Diaphragm / Disc / Trim:
  AISI 316
- Nominal size:
  DN50
- Length (mm):
  43
- Main certification:
  PED
- Origin:
  E.U.-USA-Japan
- Model:
  Z011A
- Main standard:
  EN 593
- Manufacturer:
  EBRO
ADDITIONAL FILES
- Data sheet

  View Download
